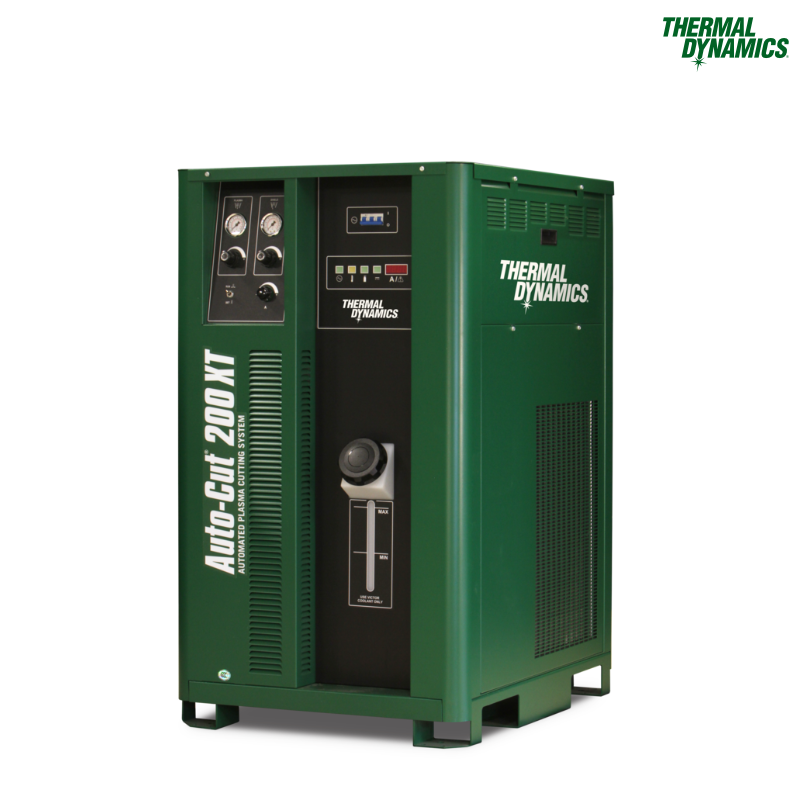

Auto-Cut 200 XT ™

Automated Plasma cutting system Auto-Cut 200 XT delivers the next level in quality, flexibility and reliability for heavy plate cutting applications on mild steel and non-ferrous metals. XT-301™ torch consumable parts are designed for cutting metals from 1 mm to a 35 mm plate with 200 XT

Specifications

Automated Plasma cutting system Auto-Cut 200 XT delivers the next level in quality,
flexibility and reliability for heavy plate cutting applications on mild steel and non-ferrous metals.
XT-301™ torch consumable parts are designed for cutting metals from 1 mm to a 35 mm plate.

Auto-Cut 200 XT™ Specifications:
Max OCV (U0) 425 VDC
Max Output Current 200 Amps
Output Voltage 60 - 170 VDC
Duty Cycle Rating 100% @ 200A @ 200V (40 kW)
Operating range -10°C to + 50°C
Power Factor 0.94 @ 200 ADC Output
Cooling Forced Air (Class F) and Liquid Cooled
Power Supply Weight 215 kg
Dimension 1219 mm x 698 mm x 1031 mm
Warranty 2 Years Power Supply & 1 Year Torch
Auto-Cut 200 XT™ Cutting Specification:
Production Piercing 25 mm
Maximum Piercing 35 mm
Edge Start 55 mm
Plasma Gas Air, O2, Ar-H2, N2 @ 8.3 bar
Shield Gas Air, N2 @ 8.3 bar
Water Mist Secondary H2 0 @ 0.6 l/min
Auto-Cut 200 XT™ Power Supply:
Input Voltage 400 V AC / 3-ph
Input Frequency 50-60 Hz
Power Input 41 kVA
Fuse 100 Amps
Wire 16 mm2


in accordance with the following Directive(s):
2006/95/EC The Low Voltage Directive
2004/108/EC The Electromagnetic Compatibility Directive

in conformity with the applicable requirements of the following harmonized standards:
CENELEC EN61010-1 Ed:3 Safety Requirements for Electrical Equipment for Measurement, Control, and
Laboratory Use Part 1: General Requirements


Features

  •  Auto-Cut 200 XT  & 300 XT  systems deliver premium cut performance on both mild steel and non-ferrous metals.
    These power supplies are designed for reliable, low cost operation.
    Machine Status Message Center make the these models easy to operate. Features plasma torch XT-301™
  • Auto-Cut XT systems with the XT-301 torch, are normally operated using economical air plasma and air shield gas for cutting mild steel and
    most non-ferrous metals. This results in high quality surface finishes and low dross cuts.

    • MaximumLife® parts - to lower operating costs.
  • • Increased Productivity - for greater profits.
    • Water Mist Secondary WMS® - for low cost, high quality cutting on non-ferrous metals.
  •
  •
  •
