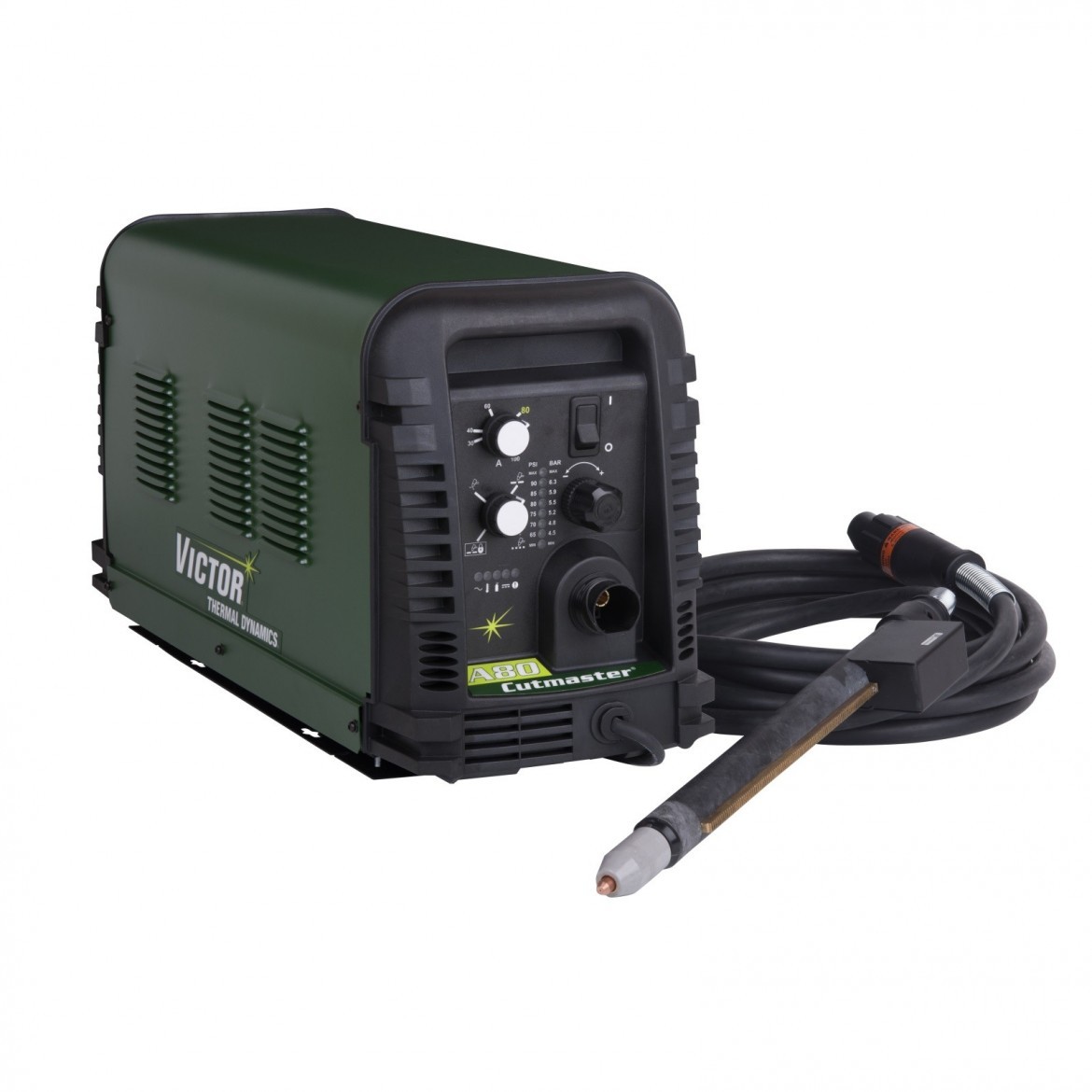

CutMaster A80 provides sufficient power for cutting metal with thickness up to 20 mm. CNC Interface connection, CutMaster equipment allows to operate continuously throughout the day, using the recommended high-quality cutting mode.
| The maximum operating current | 80 A |
| Power Consumption | 12 kW |
| High quality cutting thickness | 12 mm |
| The maximum thickness of the cutting | 20 mm |
| Separating cut material thickness | 30 mm |
| Material piercing thickness | 20 mm |
| Power supply | 400V/28A 3 phase 50/60 Hz |
| The duty cycle (temperature 40˚C) | 80% - 80 A |
| Dimensions | 343 x 248 x 660 mm |
| Weight | 28,6 kg |
| Plasma torch model | SL100®SV 1Torch® |
| The required air pressure | 5.2 bar |
| Approximate air consumption | 189 l/min |
| Certificates | CE, ROHS, IP23C, NTRL/C, CCC, C-TICK, ГОСТ-Р |
|
Warranty: Power source Plasma torch |
3 years 1 year |
Setting the Standard in Flexibility, Value and Performance. Introducing the next generation of Automated CUTMASTER Systems from Thermal Dynamics®. Based on the same proven platform as the TRUE™ Series, the Cutmaster A-Series offers standard features to meet the needs of many automated applications.
A powerful 80% Duty Cycle to handle all-day production cutting in the toughest environments. Light-weight, compact design and convenient mounting feet allow for easy mounting in any application. Valve in torch design reduces cycle time between parts and increases productivity.
CNC Interface connection is located on the rear of the power supply offering “Start/Stop”, and “OK to MOVE” signals. Full arc voltage is available using an internal terminal connection. Software automatically detects the torch that is attached and switches between automation and manual modes. Dedicated automation software improves cycle time and performance in many applications. A-Series includes the SL100®SV 1Torch® with standard ATC Quick Disconnect in lengths of 25 ft. (7.6 m), 35 ft. (10.7 m) and 50 ft. (15.2 m) (Longer torch leads up to 100 ft. (30.5 m) available).
Our 1Torch start technology eliminates the electronic interference that can occur with other designs. 1Torch provides quick, reliable starts and a strong pilot arc to pierce heavy plate. With auto-pilot restart, it can also cut expanded metal quickly and easily. With all the advantages of 1Torch and proven CUTMASTER reliability, the new automated CUTMASTER A-Series delivers the best in productivity, precision and performance.
Simplicity - LED indicators on the front panel inform the operator of the installation work, and provide maximum ease of control, equipment mode change and use.
Power reserve - CutMaster equipment allows to operate continuously throughout the day, using the recommended high-quality cutting mode. If you need more power for cutting thicker material, you can be sure - it is possible.
Versatility - CutMaster TRUE with proprietary plasma torch 1Torch ® and ATC connections to work up to 30.5m radius from the power source
