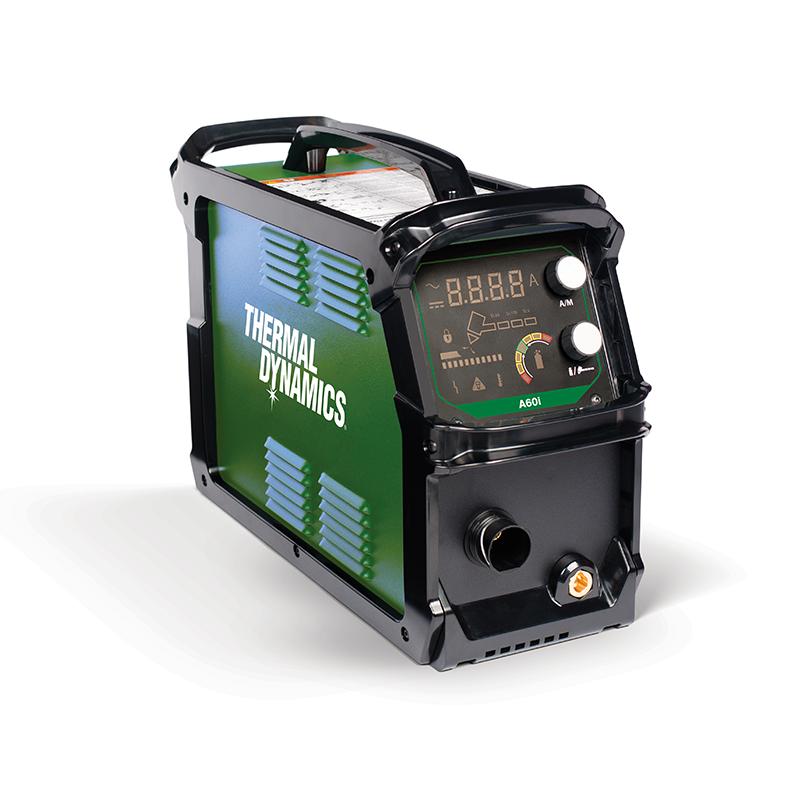

Thermal-Dynamics A60i plasma power source, CNC automated plasma cutting system, metal cutter. The machine is designed for automatic or manual plasma cutting. Designed for cutting with high quality material thickness from 1 to 15 mm.
| Operating current | 10 - 60 A |
| Recommended Cut | 10 mm |
| Maximum Cut | 15 mm |
| Maximum Edge Start | 25 mm |
|
Input Ratings |
380/400V, 3 Phase, 50/60 Hz |
| Output Power | 7.9 kW |
| Open Circuit VDC High | 300 VDC |
| Duty Cycle |
80% @ 60 A 100% @ 50 A |
|
Plasma Gas Requirements |
Air @ 5,2 bar @ 189 lpm argon ( for marking only) |
|
Weight |
15.9 kg |
| Size | 359 mm x 199 mm x 536 mm |
| Work cable | 6.1 m |
| CNC Control | CNC rear panel connection: “Start/Stop”, “OK to MOVE” |
| Warranty | 3 years plasma source 1 year plasma torch |
| Certification | IP-23C, CSA, NTRL/C, CE, CCC |
• Powerful duty cycle 80% Duty Cycle to handle all-day production cutting in the toughest environments.
• Proven 1Torch technology The A-Series systems include the SL100® SV 1Torch start technology eliminating the electronic interference that can occur with other designs. The 1Torch provides quick, reliable starts and a strong pilot arc to pierce heavy plate. With auto-pilot restart, it can also cut expanded metal quickly and easily.
• Power factor correction (PFC) Lower your overall current draw and power consumption with the built-in PFC technology which results in lower cutting cost.
• Durable LED display The system’s large, high-visibility display allows for easy viewing of all machine settings from a distance. The intuitive, easy-to-use display instantly provides the necessary feedback for keeping your settings and cut quality optimised.
• Gas optimiser This unique technology precisely regulates air pressure, ensuring premium cut quality and performance. When you set amperage and select torch type, torch lead length, and mode of operation, you are visually prompted to adjust gas pressure accordingly while still having the flexibility to tweak that setting to your liking.
• Consumables end-of-life indicator A40i/A60i end-of-life indicator monitors the remaining life of the consumable parts and alerts you when it is time to replace, maintaining optimal performance and cut quality.
• Portable size and weight in its class Easy to install on gantry without loosing dynamics of the cutting machine. No long torch leads packages necessary .
• Easy installation No need to open the machine to have access to input power cord, work cable or raw arc voltage. All connections to your CNC are right at your fingertips.
