CutMaster 40

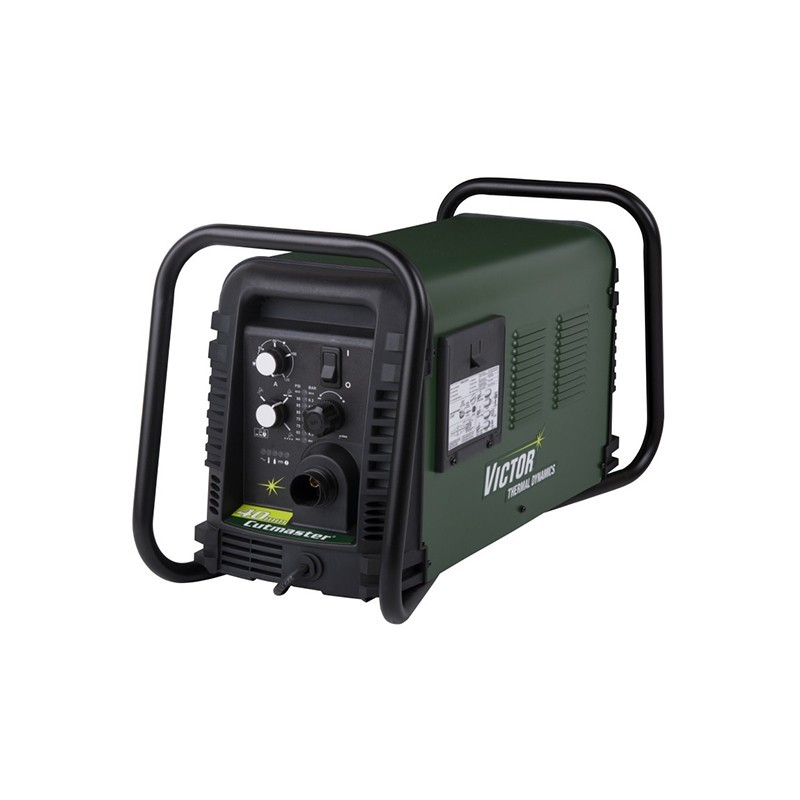

Plasma cutting unit CutMaster 40 is the most productive and most powerful. The unit provides sufficient power for cutting metal with thickness up to 55 mm.

Specifications

Maximum operating current - (A)

120

Power Consumption - (kW)

15,4

High quality cutting thickness - (mm)

40

The maximum thickness of the cutting - (mm)

50

Separating the cut material thickness - (mm)

55

Pierce the material thickness (mm)

25

Power supply (voltage, current, phase, see., Frequency)

400V / 34A 3-phase 50/60 Hz

The load cycle (temperature 40˚C)

80%  - 120 A

Dimensions (height х width х length) - (mm)

381 x 305 x 762

Weight - (kg)

28,1

Plasma generator model

SL100

The required air pressure - (bar (kg / cm2))

4,8

Approximate air consumption - (l / min)

212

Certificates

CE, ROHS, IP23C, NTRL/C, CCC, C-TICK,

Warranty:  Plasma source

               Plasma torch

3 years

1 year

Features

Simplicity - LED indicators on the front panel inform the operator of the installation work, and provide maximum ease of control, equipment regime change and use.

Power reserve - CutMaster equipment allows to operate continuously throughout the day, using the recommended high-quality cutting mode. If you need more power for cutting thicker material, you can be sure - it is possible.

Reliability - As a complement to a 3-year guarantee TRUE GUARD ™ rods provide equipment protection and handy movements.

Nozzles True Tip ™ - today's market only Thermal Dynamics plasma system CutMaster TRUE to offer a nozzle that allows the nozzle in contact with the cutting surface of the material, while ensuring unmatched cut quality.

Versatility - CutMaster TRUE with proprietary plasma torch 1Torch ® and ATC connections to add an extension and work up to 30.5m radius from the power source

Mobility - machine CutMaster TRUE maintaining high performance is easy and convenient to be moved.
