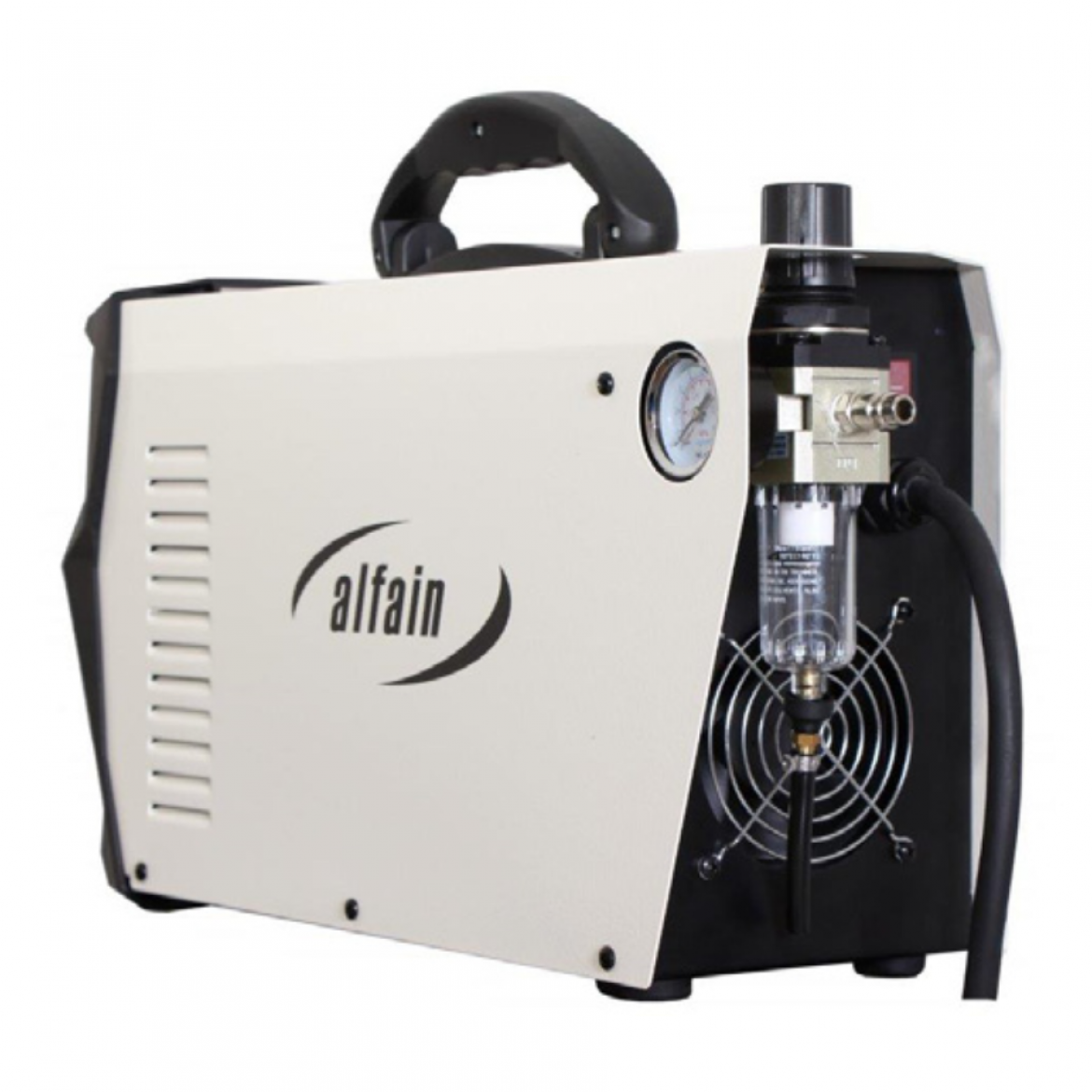

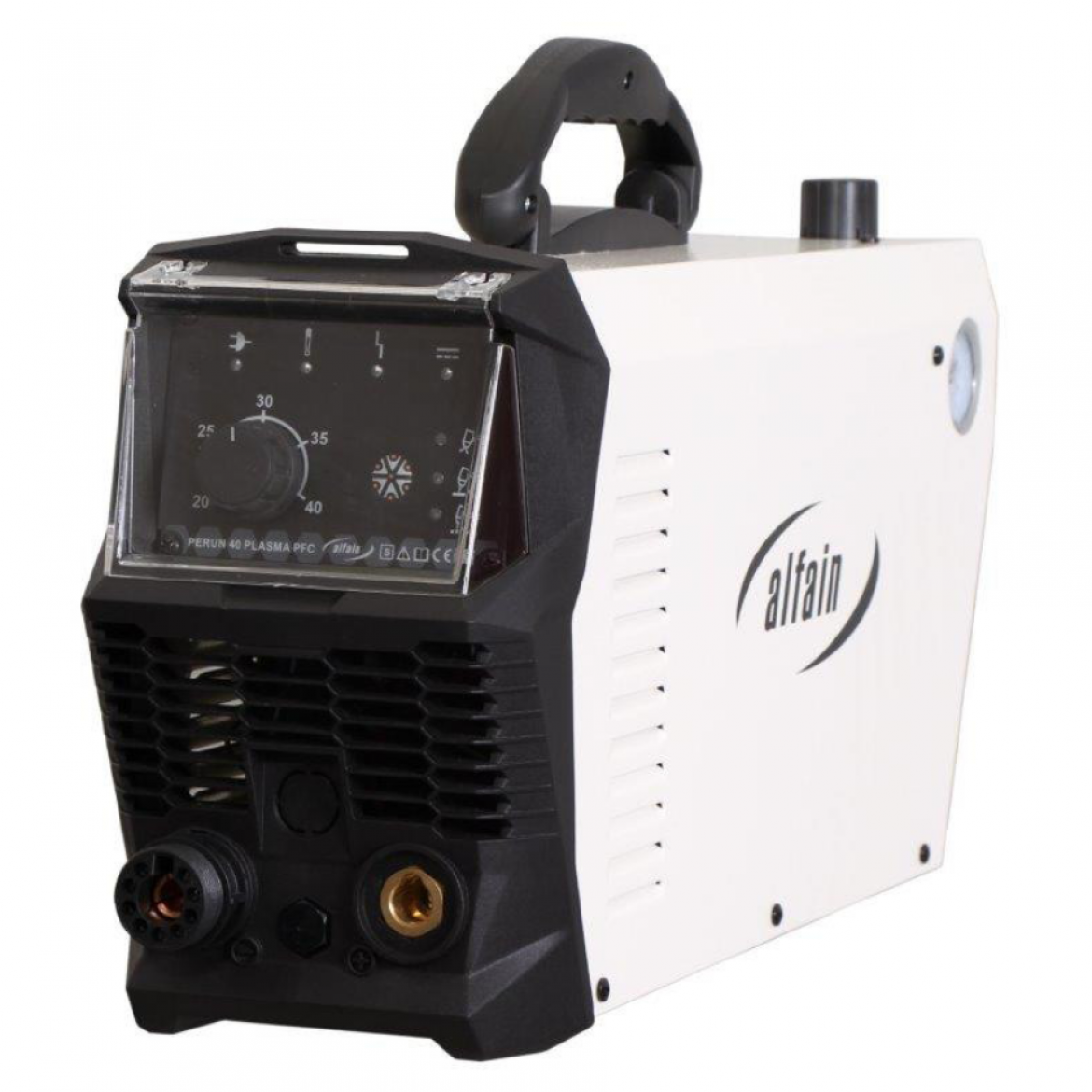

PERUN 40 PLASMA PFC

PERUN 40 PLASMA PFC - Plasma power supply. Manual plasma cutter for cutting metal material with compressed air. It is possible to ceiling carbon steel up to 15 mm in very good quality. IGBT inverter, machine is equipped with a power factor corrector PFC, which allows the unit to operate stably at supply current fluctuations from 115 to 265 V.

Specifications

Mains Voltage, V	1x110/50-60Hz	1x230V/50-60Hz
Cutting current, А	20-30	20-40
Duty cycle +40˚С, %	100% - 20A	100% - 28A
Maximum thickness for separating cutting	15 mm	20 mm
Maximum thickness for quality cutting: Carbon steel Stainless steel Aluminium Copper	10 mm 8 mm 6 mm 3 mm	15 mm 12 mm 10 mm 4 mm
Air pressure	5.0 bar
Compressed air consumption (Torch SCP 60 / ABICUT 45)	110 / 119 l/min
Basic-arc ignition principle	contact, without HF ignition
Dimensions LхWхH	160 x 505 x 310 mm
Weight	8.0 kg
Protection class	IP23S
Warranties: Power supply Plasma torch	2 years 1 year

Features

IGBT inverter, machine is equipped with a power factor corrector PFC, which allows the unit to operate stably at supply current fluctuations from 115 to 265 V.
