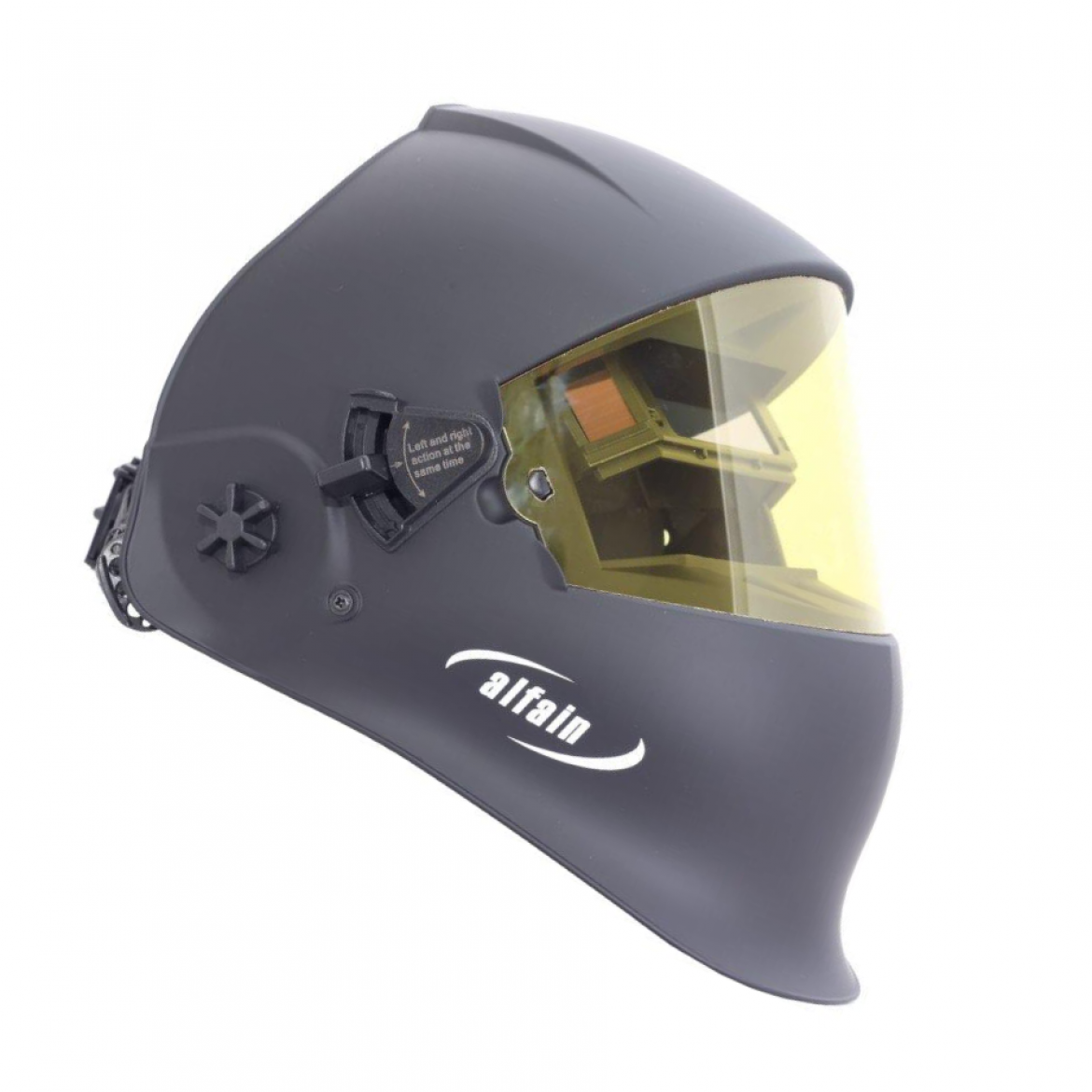

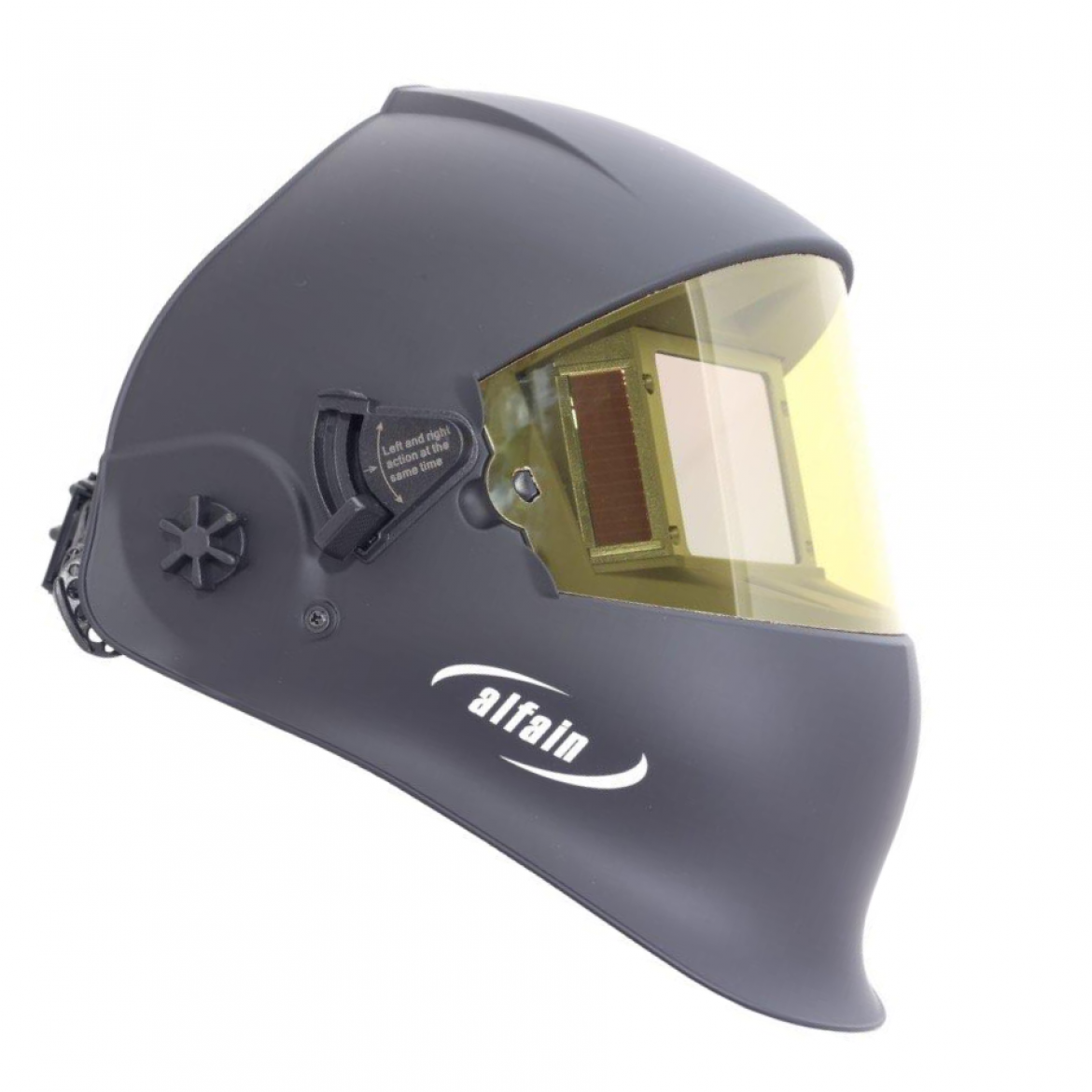

S20B FLIPPER - Welding helmet. Auto-darkening filter welding helmet is designed to protect the face from sparks, molten metal splashes and hazardous radiation under normal conditions during welding. The viewing field of user is clear, fully transparent and provides a field of view of 150 degrees. These properties are used by welders not only when grinding, but also when preparing for precision welding or in areas with reduced visibility. Suitable for all arc welding and cutting methods: TIG, MIG , MMA, PAC etc.
Manual| Viewing field | 100 x 65 mm / 3.94“ x 2.56“ |
| UV/IR protection | Up to shade DIN 16 all time |
| Function | WELDING / GRINDING can be selective |
| Light level | Shade 3 (& 3.5) |
| Light state | DIN 4 – DIN 8 |
| Dark state | DIN 9 – DIN 13 |
| Filter CE class | 1/1/1/1 |
| Reaction time | 0,000033 s (1/30,000 s) |
| Delay time | Short - Long (it can vary at 0,3 s – 0,9 s) |
| Sensitivity | Inside can be continued adjustable |
| Sensors | Four infrared detector |
| Power supply | Solar cells + lithium battery (replaced battery) |
| Power On/Off | Fully automatic |
| Operating temperature | -5 °C to +55 °C (23 °F to 131 °F) |
| Storing temperature | -20 °C to +70 °C (-4 °F to 158 °F) |
| Helmet material | Hight-impact resistant Polyamide (Nylon) DIN EN 175 B CE |
| Total weight | 540 g |
This product is in conformity with related DIN EN 379, DIN EN 175 safety standards and
ANSI/ISEA Z87.1-2015 safety standards.
Helmet has the option of a unique mechanical switch to Grinding / Preparation mode. Our solution for tilting the cassette is unique in that it slides inside the hood into the space between the head and the skeleton of the helmet. The center of gravity of the cassette is then as low as possible.
This fact is very important to minimize fatigue during long-term use of the hood. In this mode, the viewing field of user is clear, fully transparent and provides a field of view of 150 degrees. These properties are used by welders not only when grinding, but also when preparing for precision welding or in areas with reduced visibility.
Even when the cartridge is not extended, the bright state is in both the welding mode and the grinding and field of view mode.

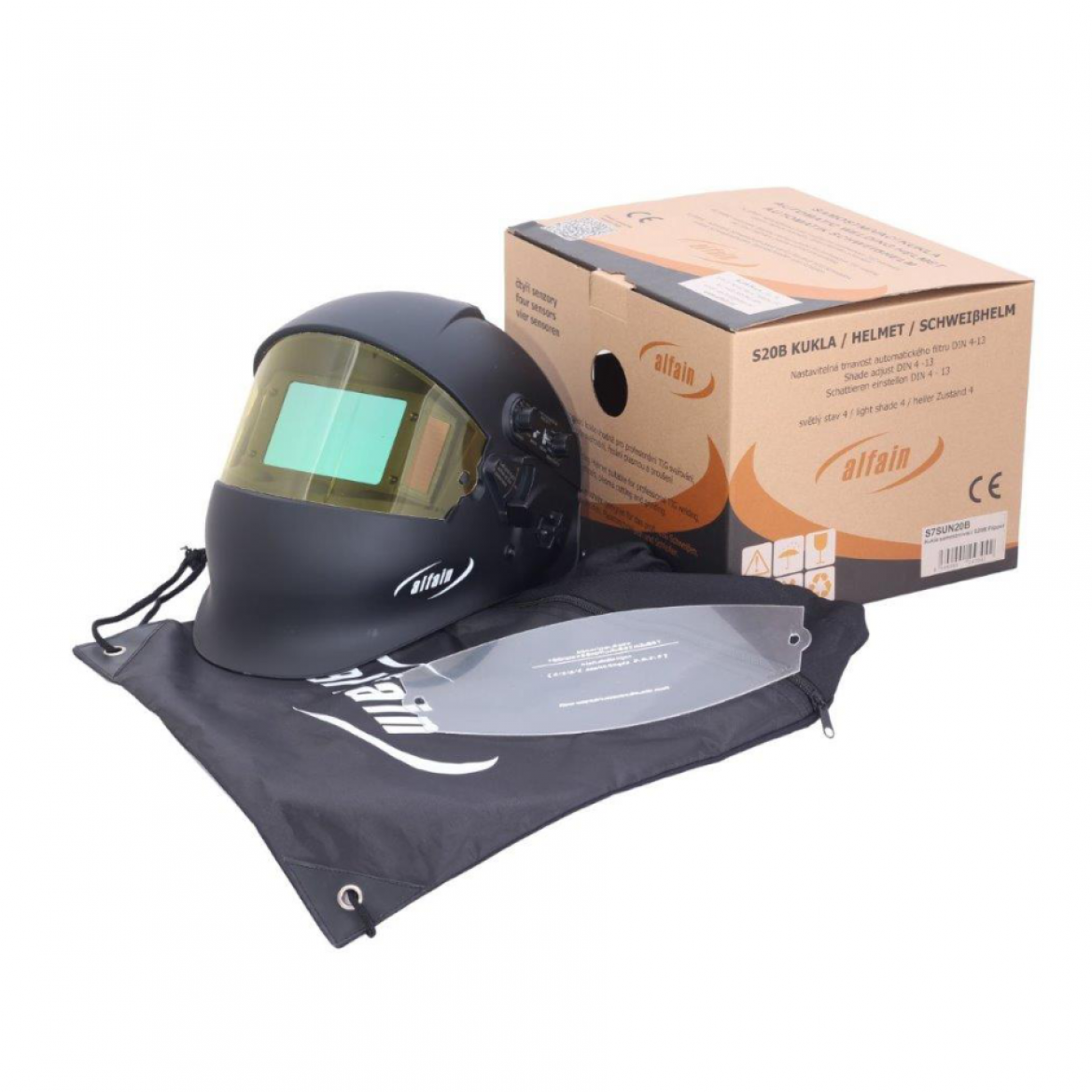

the field is 120 degrees.The basic equipment includes an outer yellow protective film that increases visual acuity. Included in the delivery is also the outer clear foil and a practical hood bag with a pocket for a spare foil.
The hood can be equipped with a dioptric lens.
Our auto-darkening filter welding helmet S20B Flipper is designed to protect the face from sparks, melt splashes and hazardous radiation under normal conditions during welding.
The auto darkening screen automatically darkens when the arc is ignited and brightens again after welding.
New features of the auto-darkening filter welding helmet S20B Flipper uses unique optical technology, so that the filter has the best color for vision meeting physiological needs and high definition.
Auto-darkening filter welding helmet comes ready for use. The only thing you need to do before your welding is to adjust the position of the headband and select the correct shade number for your application.
