aXe 320 PULSE SMART H2O AL

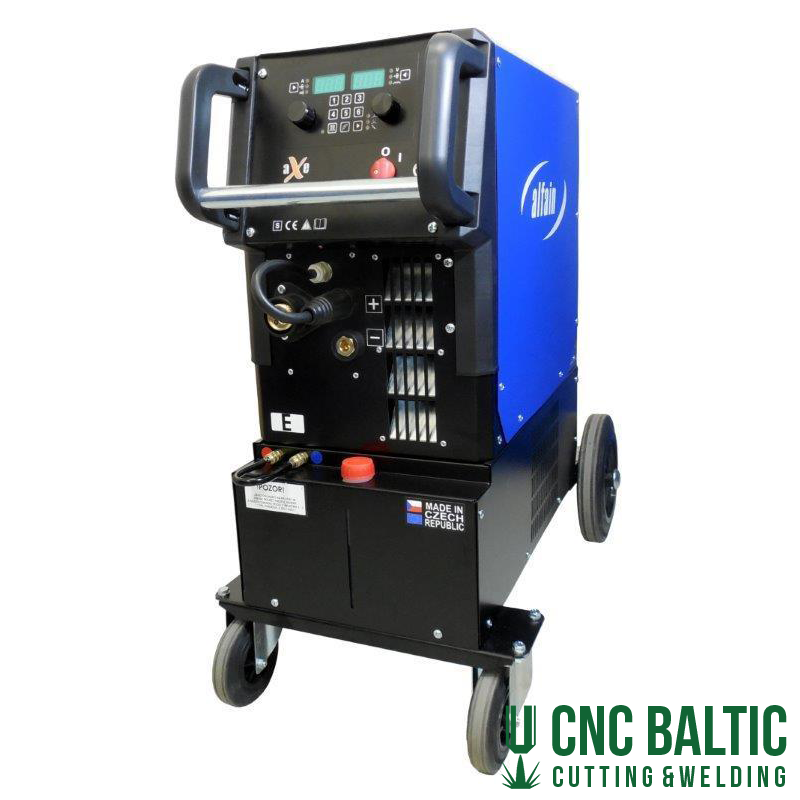

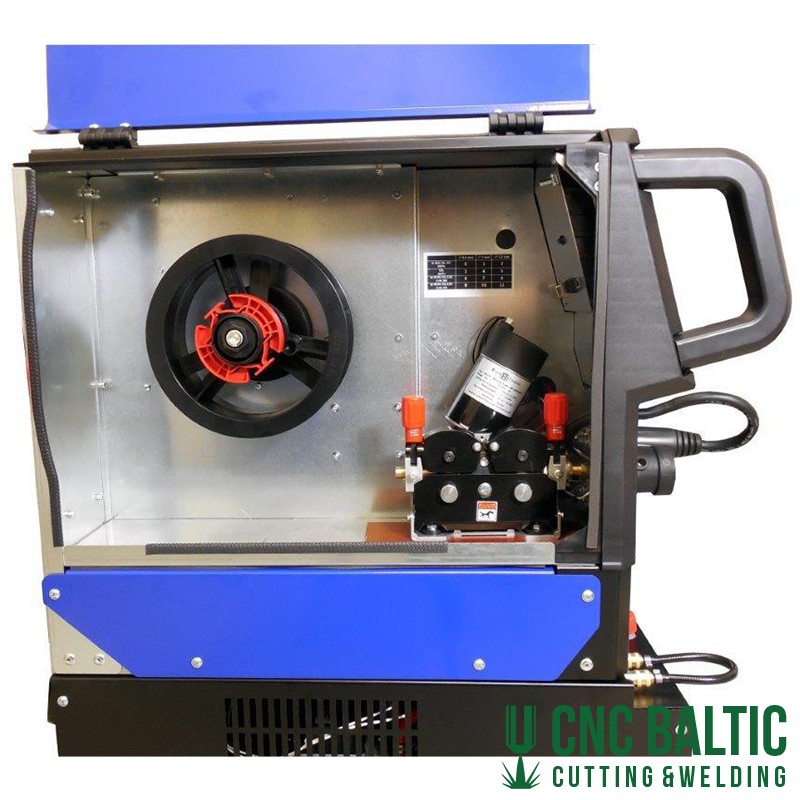

aXe 320 PULSE SMART H2O AL - Multifunctional welding inverter with Pulse working in MIG / MAG and MMA welding mode. Compact semi-automatic welding machine with built-in wire feeder and SYNERGY control system.

Specifications

Model   aXe 320 PULSE smart (AL) H2O
Method V/Hz  MIG/MAG  MMA
Mains voltage  A 3 x 400/50-60
Welding current range V 20 - 315  10 - 300
Open-circuit voltage U20 A 63,1
Mains protection A 16 @
Max. effective curren I1eff A 13,3  12,8
Welding current (DZ=100%) I2  A 210  190
Welding current (DZ=60%) I2 A 250 230
Welding current (DZ=x%) I2  A 25%=315 20%=300
Protection   IP 23S
Standart   EN 60974-1; EN 60974-10 cl. A
Dimensions (W x L x H)  mm 474 x 902 x 884
Weight - generator /compact kg 72,5
Wire speed m/min 1,0 - 16,0  -
Spool diameter  mm 300 -
Spool weight kg 18 -

Cooling power  (Q = 1 l / min) kW 0,74
Total liquid content l 4,0
Max. pressure  Bar

3,5


Max. flow l/min 8.0

Features

MIG / MAG Aluminum, stainless steel and black steel welding.

✓ Full digital control.
✓ Pulse
✓ 18 work programs in the bank.
✓ UP-DOWN remote control for burner, welding parameters configuration.
✓ Cooling unit.
✓ Cooling pump and fans in eco mode.
✓ MMA Electrode Welding Function.
