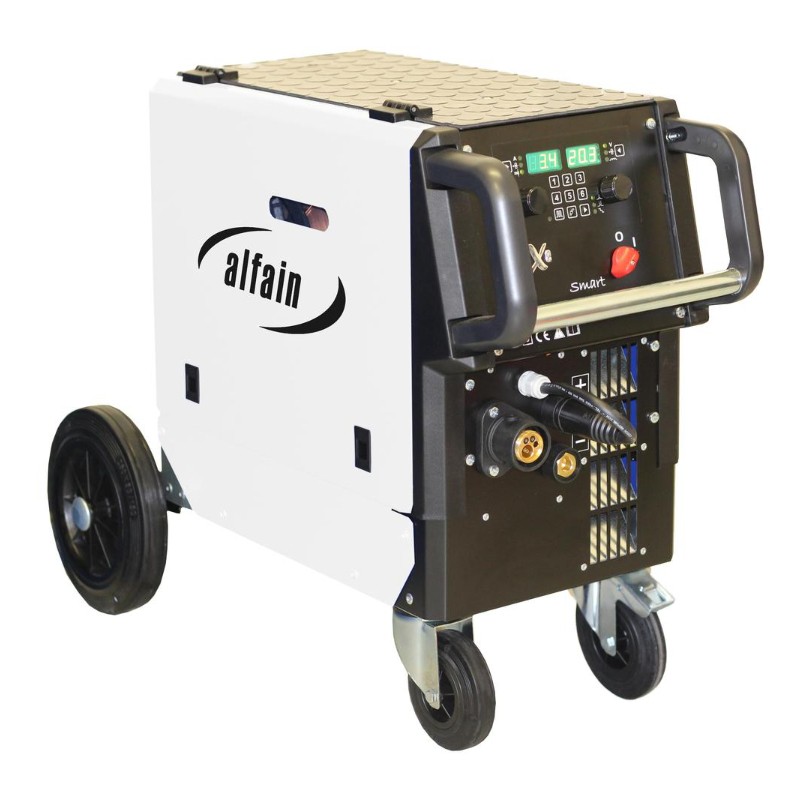

aXe 320 PULSE SMART GAS AL

aXe 320 PULSE SMART GAS AL - Welding synergy inverter for MIG/MAG and MMA, pulse. MAG welding with self-shielding wire (careful not to change the polarity) Module MMA - Welds with electrodes up to diameter of 4,0 mm.

Specifications

Model   aXe 320 PULSE SMART GAS AL
Method  V/Hz  MIG/MAG  MMA
Mains voltage  A 3 x 400/50-60
Welding current range  V 20 - 315 10 - 300
Open-circuit voltage U20 A 63,1
Mains protection  A 16 @
Max. effective current I1eff A 12,9  12,8
Welding current (DZ=100%) I2  A 210  190
Welding current (DZ=60%) I2 A 250 230
Welding current (DZ=x%) I2  A 25%=315 20%=300
Protection    IP 23S
Standards   EN 60974-1; EN 60974-10 cl. A
Dimensions (w x l x h) generator  mm 474 x 911 x 670
Weight - generator /compact  kg 47,6
Wire speed  m/min 1,0 - 20,0  -
Spool diameter  mm 300 -
Spool weight kg 18 -


Features

MIG/MAG - Full synergy or manual mode

Instant access to six currents
Excellent welding characteristics in mixed gas and CO2
Welds with wire up to diameter 0,6 – 0,8 mm, or 1,0 – 1,2 mm of different metals and alloys (such as carbon steel and alloy steel, aluminum, etc.)
Continuous voltage regulations
Settable Pregas, Postgas, Burn back, Initial speed
MAG welding with self-shielding wire (careful not to change the polarity)
Module MMA - Welds with electrodes up to diameter of 4,0 mm
4 roll feeders
Electronic regulations of the choke
Ecological cooling mode
